10 HP Solar Water Pump

10 HP Solar Water Pump

Model	10 HP Solar Water Pump
HP/KW	10 HP/ 7.5 KW
Voltage	380 V
Discharge outlet	50 mm to 125 mm
Head (Meters)	6 to 55 meter
Discharge in LPM	3200 to 300 LPM
Maximum AMP	17 A
Size of Wire	1*3 *6.0 SQ.MM
RPM	2850 RPM

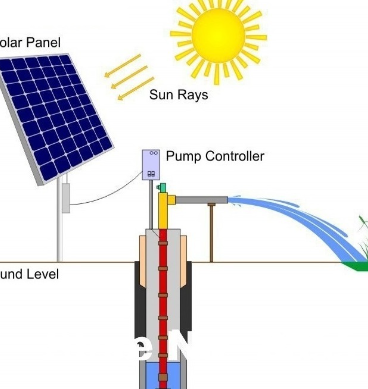

Equipment	10 KW Solar Panels, 10 hp Solar AC Pump Controller, 10 hp AC Submersible Pump, Mounting Structure and BOS
